Tools and Techniques for Measuring Voltage Drop
4. Become a Voltage Detective
Before you start tearing into your wiring, it's helpful to actually measure the voltage drop to confirm that it's the issue and to gauge its severity. The primary tool you'll need is a multimeter, a versatile device that can measure voltage, current, and resistance. Multimeters are relatively inexpensive and easy to use, even for beginners. You can find them at most hardware stores or online retailers. Consider it an essential tool for any DIY electrician.

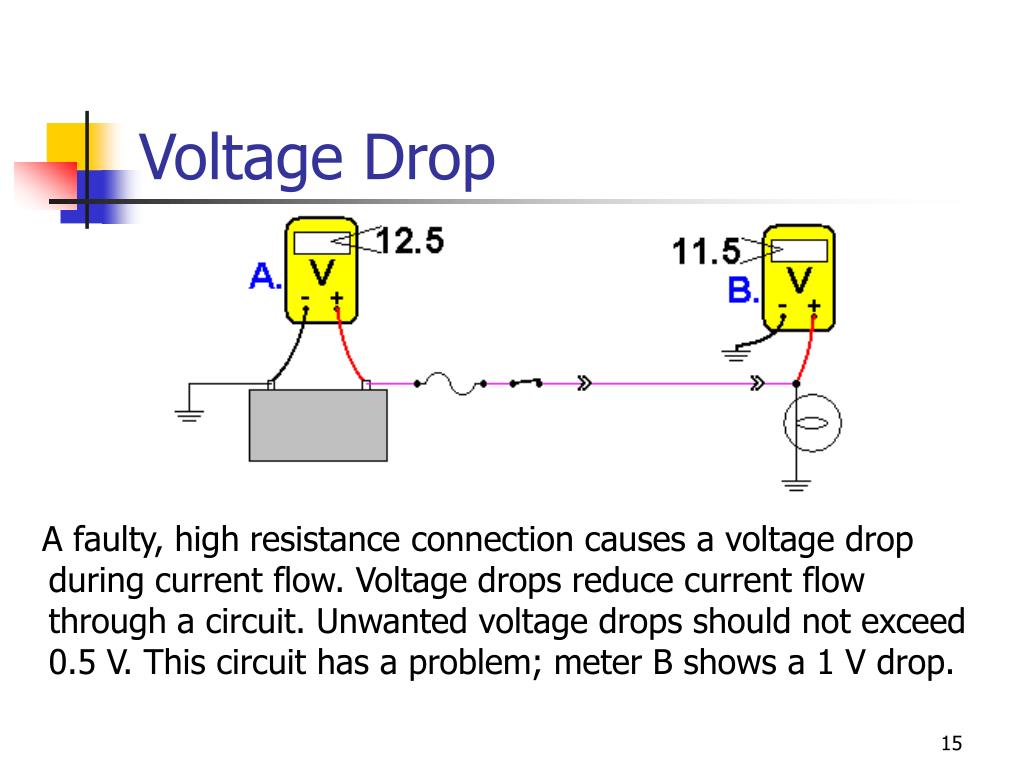

To measure voltage drop, first, ensure the circuit is energized and operating under normal load. Then, use the multimeter to measure the voltage at the source (e.g., the electrical panel) and at the load (e.g., the appliance or light fixture). The difference between these two voltage readings is the voltage drop. For example, if the voltage at the panel is 120V and the voltage at the appliance is 115V, the voltage drop is 5V. It is important to use the right probes to prevent short circuits.
Interpreting the results requires a bit of knowledge about acceptable voltage drop limits. Generally, a voltage drop of more than 3% is considered excessive and should be addressed. Consult the National Electrical Code (NEC) or a qualified electrician for specific voltage drop requirements in your area. Keep in mind that these codes are in place for safety.
Beyond a multimeter, a voltage drop calculator can be a handy tool for predicting voltage drop based on wire size, circuit length, and load. These calculators are often available online and can help you determine the appropriate wire size for your application. Additionally, a visual inspection of wiring and connections can sometimes reveal obvious signs of corrosion, damage, or loose connections that contribute to voltage drop. So, armed with a multimeter, a calculator, and a keen eye, you'll be well-equipped to diagnose and address voltage drop issues.
