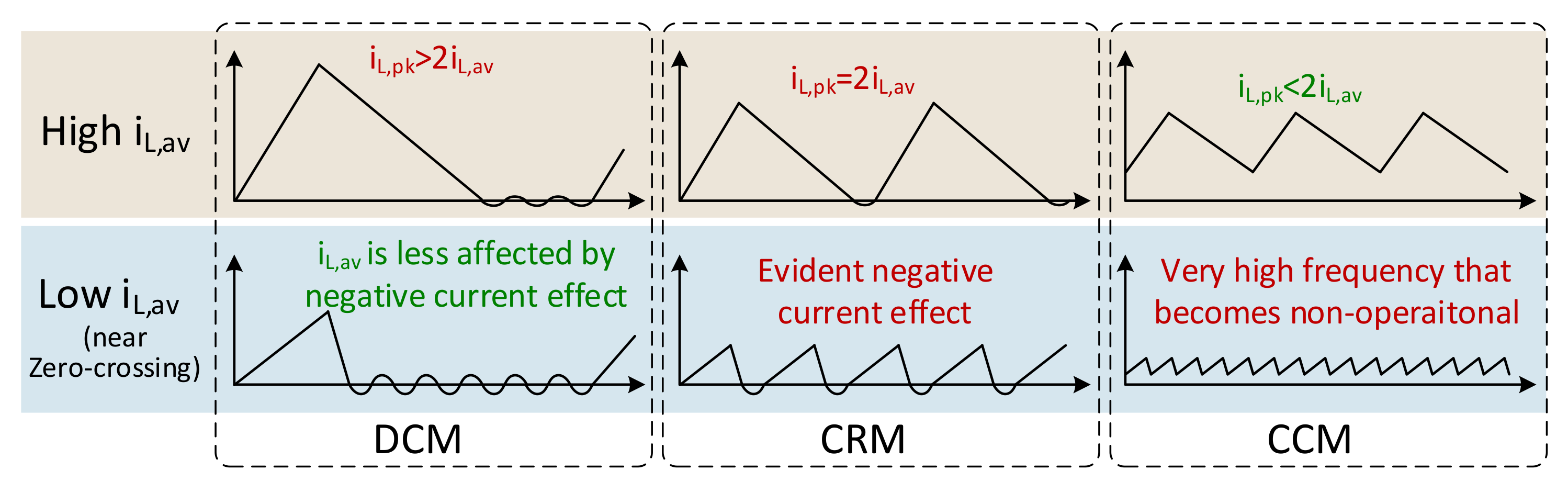

Energies Free FullText TripleMode Average Current Control With

Understanding CCM and DCM

1. What's the Big Deal About Power Converter Modes, Anyway?

Ever wonder how your phone charger manages to take the relatively high voltage from the wall outlet and magically transform it into the juice your phone needs? The secret lies, in part, within the operating mode of the power converter inside. Two of the most common modes are Continuous Conduction Mode (CCM) and Discontinuous Conduction Mode (DCM). These modes essentially dictate how the inductor current behaves in the converter circuit. Think of it like a water pipe — CCM is like a steady flow, while DCM is more like intermittent bursts.

Now, why should you care? Well, the chosen mode significantly impacts the efficiency, size, and overall performance of the power converter. Choosing the right mode is crucial for designing efficient and reliable power supplies for everything from your laptop to industrial power systems. Ignore this, and you might end up with a bulky, inefficient, or even unreliable gadget. And nobody wants that, right?

Think of it like this: Imagine you are trying to pour water into a glass without spilling. CCM is like carefully and consistently pouring water, while DCM is like pausing and resuming pouring. Both get water into the glass, but the method can have different effects on splashing (noise), speed (efficiency), and even the size of the glass (component selection).

It's not just about plugging things in, either. Understanding these modes opens the door to optimizing power consumption, improving system stability, and even creating more compact and lightweight devices. So, let's dive a little deeper and see what makes CCM and DCM tick.

The Difference Between CCM And DCM Explained Article MPS

CCM

2. Cruising Along

In Continuous Conduction Mode (CCM), the inductor current never reaches zero during the switching cycle. It's like a river that always has some water flowing, even during a drought. This continuous flow of current has some pretty significant implications for how the power converter operates. The name "Continuous Conduction Mode" says it all, really. There's always a conductive path for the current to flow through.

One of the main advantages of CCM is its lower current ripple. Because the current doesn't drop to zero, the fluctuations are smoother and less dramatic. This can lead to lower electromagnetic interference (EMI), which is basically electrical noise that can interfere with other components in your system. Think of it as a calmer, more predictable flow of energy.

However, CCM also has its downsides. One potential drawback is the higher conduction losses. Since current is always flowing, there are always some losses due to the resistance of the components in the circuit. It's like a tiny amount of water always leaking from the pipe. Plus, CCM often requires more complex control schemes to maintain stability, especially under varying load conditions. Imagine trying to control a rapidly flowing river — it takes some sophisticated engineering!

Therefore, CCM is typically favored in applications where efficiency and low noise are paramount, and where the load current is relatively high. Large power supplies, industrial converters, and server power systems often utilize CCM for their robustness and stability. Basically, CCM is the workhorse of the power converter world.

The Operation Modes Of Proposed Converter In CCM And DCM

DCM

3. Discontinuous Conduction Mode

Discontinuous Conduction Mode (DCM) is the opposite of CCM. In DCM, the inductor current reaches zero during each switching cycle and stays there for a portion of the cycle. Picture a sprinkler system that turns on and off intermittently. That's DCM in a nutshell. The current flow is not constant; it stops and starts.

One of the key benefits of DCM is its improved light-load efficiency. When the load current is low, DCM converters can operate with significantly lower switching losses compared to CCM converters. This is because the switching devices are only active for a portion of the cycle, reducing the energy wasted during switching transitions. It's like the sprinkler system using less water when the plants are already watered.

However, DCM also comes with its own set of challenges. The biggest is often higher current ripple. Because the current drops to zero, the fluctuations can be quite significant, leading to increased EMI. Think of it like the sprinkler system suddenly spraying water, causing a splash. DCM converters also typically require careful design to avoid instability, especially when transitioning between DCM and CCM. It's like making sure the sprinkler system doesn't suddenly blast water everywhere.

DCM finds its niche in applications where light-load efficiency is critical, such as battery-powered devices, standby power supplies, and LED drivers. In these scenarios, the advantages of DCM outweigh the drawbacks. Think of DCM as the fuel-sipping mode on your car; it is most efficient when cruising at lower speeds.

Figure 1 From Control Scheme For Sensorless Operation And Detection Of

Choosing Between CCM and DCM

4. Making the Right Choice

So, how do you decide whether to use CCM or DCM? The answer depends largely on the specific requirements of your application. There's no one-size-fits-all solution, and the best choice involves carefully weighing the pros and cons of each mode. It's like choosing between a truck and a sports car — each is suitable for different tasks.

If efficiency at high load currents and low EMI are your primary concerns, CCM is likely the better choice. But, if you need excellent light-load efficiency and are willing to tolerate higher current ripple, DCM might be the way to go. Of course, there are also hybrid approaches that combine the best of both worlds, switching between CCM and DCM depending on the load conditions. Think of it as having a car that can switch between fuel-efficient mode and performance mode.

Factors to consider include the load current range, the input and output voltage requirements, the desired efficiency levels, the acceptable level of EMI, and the cost and complexity of the control circuitry. A thorough analysis of these factors is crucial for making an informed decision. It's like building a house; you need to consider the climate, the budget, and your personal preferences before deciding on the design.

The design trade-offs between CCM and DCM can get pretty complex, involving intricate calculations and simulations. Experienced power electronics engineers often rely on specialized software tools and extensive knowledge of circuit design to optimize the performance of their converters. The correct mode selection is a critical part of the overall design, and greatly affects the power, cost and reliability of the end product. So, selecting either CCM or DCM is essential to the performance of the converter.

Output Current CCMDCM Mode Maps For (a) CL Boost Converter And (b) 2L

Beyond the Basics

5. Delving Deeper

While the fundamental principles of CCM and DCM are relatively straightforward, there's a whole world of advanced considerations to explore. For example, the choice of switching frequency can significantly impact the performance of both CCM and DCM converters. Higher switching frequencies can lead to smaller component sizes, but they also increase switching losses. Imagine turning a light switch on and off really fast; it gets hot quickly. This is what occurs with higher switching frequencies.

Moreover, the control scheme used to regulate the output voltage plays a crucial role in the stability and transient response of the converter. Simple PWM (Pulse-Width Modulation) control can work well in some cases, while more sophisticated control techniques, such as current-mode control or voltage-mode control, might be required for demanding applications. Think of it as the autopilot system in an airplane; it keeps the aircraft stable even in turbulent conditions.

Another important consideration is the impact of parasitic components. Real-world inductors and capacitors have non-ideal characteristics, such as series resistance and parasitic capacitance, which can affect the performance of the converter. Careful component selection and layout design are essential for minimizing the impact of these parasitic effects. It's like building a bridge; you need to account for the weight of the materials and the effects of wind and weather.

Finally, advanced power converter topologies, such as resonant converters and soft-switching converters, can further improve efficiency and reduce EMI. These topologies often utilize specialized control techniques to achieve near-zero voltage or zero current switching, minimizing switching losses and improving overall performance. Think of it like using a turbocharger in a car; it boosts the engine's performance without significantly increasing fuel consumption. In summary, when designing high power conversion circuitry a lot of careful considerations must be put into place.
