The Contenders
2. The Schottky Diode
The champion of speed? Many would point to the Schottky diode. These diodes are unique because they use a metal-semiconductor junction instead of a semiconductor-semiconductor junction (like in a standard p-n junction diode). This difference results in a significantly faster switching speed. They work by minimizing something called "reverse recovery time", this is when the diode stops conducting in reverse. This is extremely useful for switching power supplies and high-frequency radio circuits.
What makes Schottky diodes so swift? It's all about the physics at the junction. In a regular diode, when you switch from forward to reverse bias, you need to clear out all the stored charge carriers. This takes time. Schottky diodes have much less charge storage, hence, they can switch much more quickly. Their minimal charge storage is what gives them such a huge advantage when it comes to speed.
Because Schottky diodes switch fast, they can handle higher frequencies in circuits. This makes them popular for high frequency circuits and sensitive detector circuits. Think of them as the sprinters of the diode world. They might not be the strongest, but they're definitely the fastest off the block.
The downside? Schottky diodes tend to have a lower forward voltage and a higher reverse leakage current compared to other diode types. This means they might not be suitable for applications where high voltage is involved. But when speed is paramount, Schottky diodes are often the go-to choice.
3. PIN Diodes
PIN diodes, named for their P-type, Intrinsic, and N-type layers, are very good for RF applications. The intrinsic layer between the P and N regions gives them special properties. This middle "I" region makes them good for handling high frequencies, like those found in radio transmissions.
The magic of the PIN diode lies in its ability to act as a variable resistor at RF frequencies. By changing the forward current, you can adjust the resistance of the diode. This makes them extremely useful in RF switches, attenuators, and phase shifters — all essential components in radio communication systems.
While not as lightning-fast as Schottky diodes in terms of pure switching speed, PIN diodes excel at handling high frequencies and large signal swings. They can also withstand higher voltages than Schottky diodes, making them suitable for power amplifier applications. In the grand scheme of things, the pin diodes are capable when it comes to speed.
In certain RF applications, PIN diodes often outperform Schottky diodes due to their ability to handle higher power levels and maintain linearity at high frequencies. So, while the Schottky might win a short sprint, the PIN diode is a marathon runner in the RF world.
4. Fast Recovery Diodes
Standing between the speedy Schottky and more general-purpose diodes, we have fast recovery diodes. These are designed to minimize the reverse recovery time, but they don't quite reach the speed levels of the Schottky. They're typically made using specialized diffusion or epitaxial processes to reduce charge storage.
Fast recovery diodes offer a good balance between speed, voltage handling capability, and cost. This makes them popular in applications like switching power supplies, where a fast switching speed is important but doesn't need to be as extreme as with RF circuits. They provide efficient switching with minimal losses, helping to improve the overall efficiency of the power supply.
While they don't quite boast the headline-grabbing speed of Schottky diodes, fast recovery diodes are dependable and work really well. They are a dependable option for a wide variety of uses.
Basically, fast recovery diodes are reliable, cost-effective, and pretty quick! Their wide range of applications keeps them as a major player in electronics. They can hold their own against the competition.
5. Standard P-N Junction Diodes

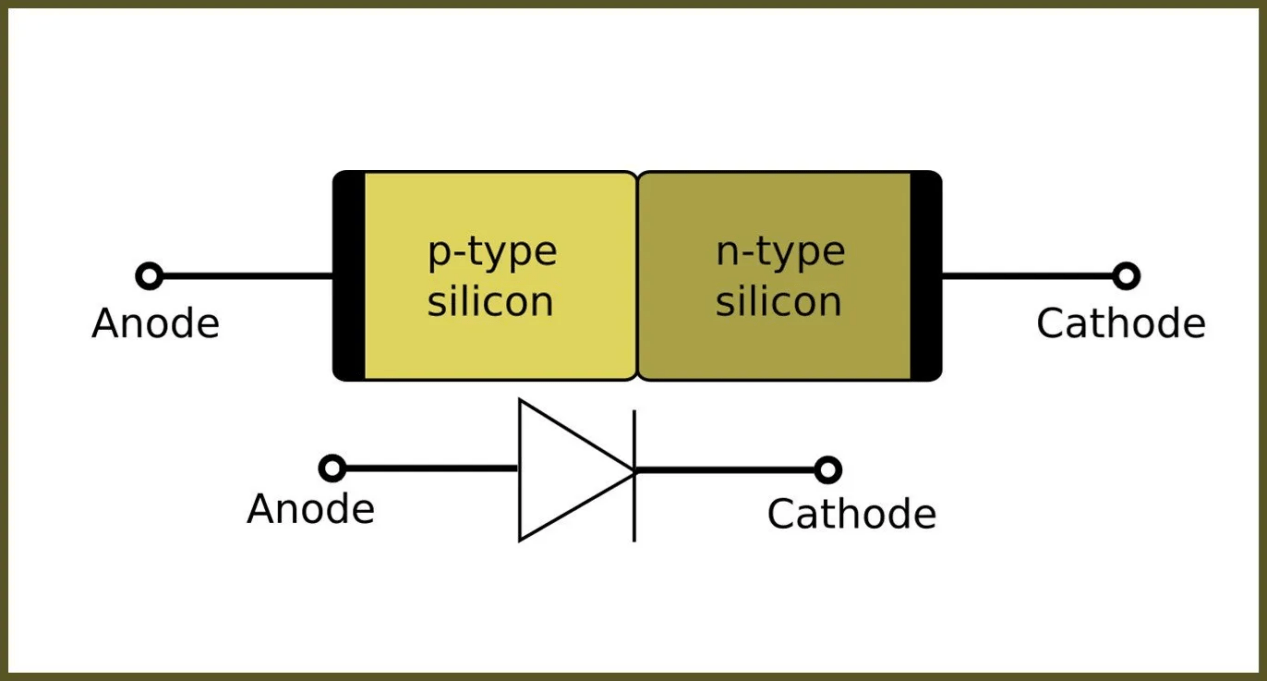

These are the most common diodes you'll find, built with a straightforward P-N junction. Simple, reliable, and used in countless applications, from rectifying AC voltage to protecting circuits. They're like the dependable pickup trucks of the diode world — not fancy, but they get the job done.
Although P-N junction diodes are the most used diode, they are not built for high speed. They tend to have slower switching speeds because of their design. They are, however, very robust and able to withstand high voltages and large currents. They're the go-to choice where speed isn't a big deal.
They are great for general applications because of their high power handling capabilities and lower cost. They still hold an important place in electronics. When speed is not the most important thing, you can count on these.
So, while they might not win any races, standard P-N junction diodes are dependable. Their robust design and low cost make them an indispensable part of electronic circuits.
